The EDK series has the same high performance line-to-line attenuation while still meeting the very low leakage current requirements of SEV, VDE portable equipment and UL 544 nonpatient care equipment.

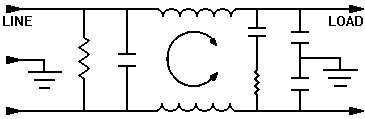

Resistor positions for reference only.
VDK Models EDK Models Maximum leakage current, each line to ground @ 120 VAC 60 Hz:.50 mA.25 mA @ 250 VAC 50 Hz:.90 mA.50 mA Hipot rating (one minute): line-to-ground2250 VDC line-to line1450 VDC Operating frequency:50/60 Hz Rated voltage:120/250 VAC Rated current:@ 120 VAC @ 250 VAC 1VDK/1EDK1A1A 3VDK/3EDK3A3A 6VDK/6EDK6A6A 10VDK/l0EDK10A8A 20VDK/20EDK20A16A Minimum insertion loss in dB: Line-to-ground in 50 ohm circuit Current Frequency-MHz Rating.15.5151030 VDK Models 1A,3A183040484840 6A, 1A, 20A102230394450 EDK Models 1A, 3A172733454540 6A, 1OA, 20A101925344046 Line-to-line in 50 ohm circuit Current Frequency-MHz Rating.15.5151030 VDK, EDK Models 1A, 3A184762605045 6A, 10A, 20A 20 43 55 65 60 55Case Styles

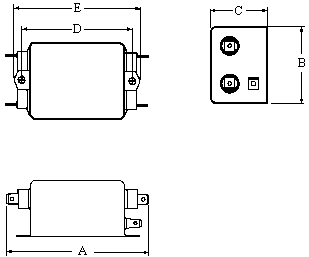

Metric shown in italics.VDK1/EDK1
Typical dimensions Fastons:.250 (5)Holes:.07 Dia.Solder Tabs:.07 x .16 6.351.81.8 x 4.1 Mounting holes:.188 Dia (2) 4.78

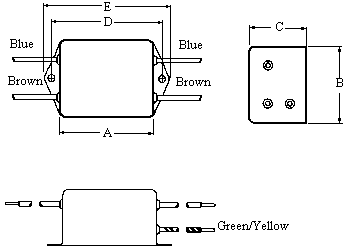

VDK3/EDK3
Typical dimensions Wire leads:4.0"Mounting holes:.188 Dia. (2) 101.64.78

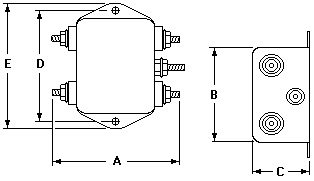

20VDK1/20EDK1
Typical dimensions Fastons:.250 (5)Holes:.07 Dia.Mounting holes:.188 Dia. (2) 6.351.84.78

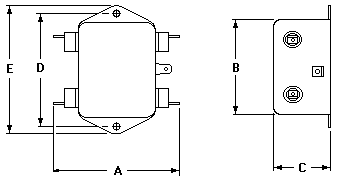

20VDK6
![]()
Case Dimensions
Metric shown in italics. ABCDE Part No.(max)(max)(max)+/-.015(max) 1VDK1, 1EDKL3.352.071.162.3752.81 85.0952.629.560.3371.4 1VDK3, 1EDK32.072.071.16.2.3752.81 52.652.629.560.3371.4 3VDK1, 3EDKl3.852.071.162.9383.35 6VDK1, 6EDKl97.852.629.574.6385.1 3VDK3,3EDK32.562.071.162.9383.35 6VDK3,6EDK365.052.629.574.6385.1 1OVDK1,3.852.071.322.9383.35 10EDKl97.852.633.574.6385.1 1OVDK3,2.572.071.322.9383.35 10EDK365.352.633.574.6385.1 2OVDK1,3.852.581.782.9383.35 20EDKl97.865.545.274.6385.1 2OVDK63.462.581.782.9383.35 87.965.545.274.6385.1For more information
